Packing Away the Left Side of the Roof – green oak barn

Friday 5/3/21

The softwood elements of the lefthand hip of the roof came down quickly and easily and were stacked away. Then Ben treated a few woodworm holes we had noticed. We then had to dismantle the truss and came up with an ingenious way of doing this. We released the bottom of the principal rafters by removing the pins. I then made a T-shaped prop out of a bit of 4″ x 2″ and placed the top bit under the king post pins and the bottom bit on top of a hydraulic jack and clamped it to the king post.

Dismantling the left truss

We then pumped the jack and this lifted the king post and principal rafters out of their joints with the tie beam. With the joints partially released, and supported but timber spacers, it was easy to tilt the king post to one side and then the other and remove the principal rafters one at a time.

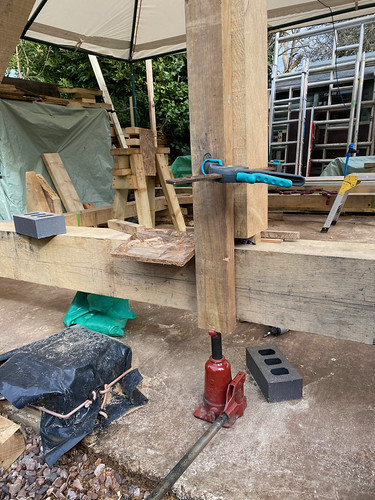

Dismantling the left truss - top Dismantling the left truss - bottom

We stacked the green oak elements of the left side of the roof to one side.

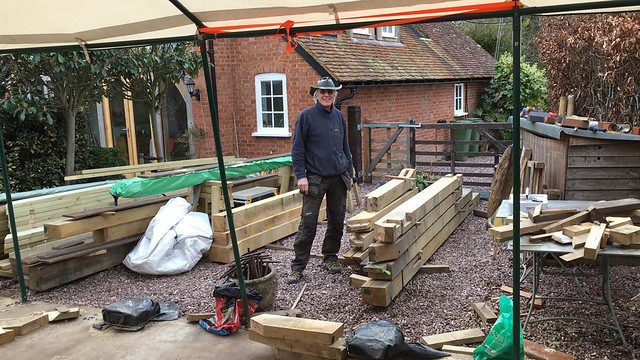

Simon next elements of the left side of the roof

The slab was now clear for the first time in a while.

Cleared slab

We moved in the front and rear wall plates for the right side of the building…

Bringing in the wall plates - right

…and the end wall plate.

Bringing in the wall plates - end

We are now ready to work on the joints between the wall plates for the right of the building.
